ASSY SERCO 1/4 CORD COMBINATION GRAPPLE 680978

ASSY SERCO 1/4 CORD COMBINATION GRAPPLE 680978

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

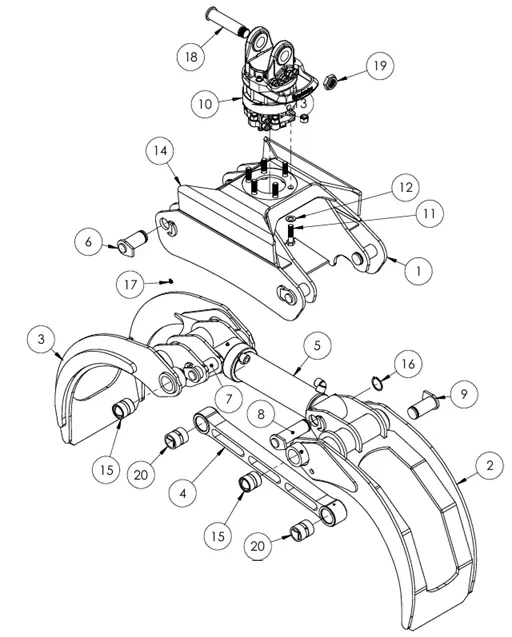

[8500 - 680978] ASSY SERCO 1/4 CORD COMBINATION GRAPPLE 680978

Ref No	Part No	Part	Avail Qty	Qty	Price	Cart
4	5001901	[8500 - 5001901] TIMING ARM WELDMENT - Part No. 5001901	10		$1298.44
5	021302	[8500 - 021302] ASSY SERCO CYLINDER, 4.00 X 12.25 - Part No. 021302	10		$1998.44
6	460087	[8500 - 460087] PIN WELDMENT, ARM TO HEAD - Part No. 460087	10		$89.54
7	460084	[8500 - 460084] PIN WELDMENT, CYLINDER/TIMING ARM - Part No. 460084	10		$92.75
8	460085	[8500 - 460085] PIN WELDMENT, CYLINDER - Part No. 460085	10		$92.68
9	460086	[8500 - 460086] PIN WELDMENT, TIMING ARM - Part No. 460086	10		$89.85
11	AA2527	[8500 - AA2527] HHCS 0.75-10 X 3.00 G8 - Part No. AA2527	10		$4.25
12	AA5113	[8500 - AA5113] FLATWASHER A325 .75 - Part No. AA5113	10		$0.97
13	AA1207	[8500 - AA1207] NUT, NYLOCK 0.75-10 - Part No. AA1207	10		$1.89
15	450555	[8500 - 450555] MCHG BUSHING 2.00 X 2.50 X 2.50L - Part No. 450555	10		$92.12
16	AA6000	[8500 -AA6000] SNAP RING, 2.00 - Part No. AA6000	10		$8.45
17	AA4501	[8500 - AA4501] GREASE FITTING STRT - Part No. AA4501	10		$1.08
18	460440	[8500 - 460440] PIN, 45mm X 7.63 - Part No. 460440	10		$116.42
19	AA1259	[8500 - AA1259] NUT, 1.50 NYLOCK - Part No. AA1259	10		$14.95
20	450559	[8500 - 450559] MCHG BUSHING, 2.01 X 2.50 X 2.75L - Part No. 450559	10		$76.19
